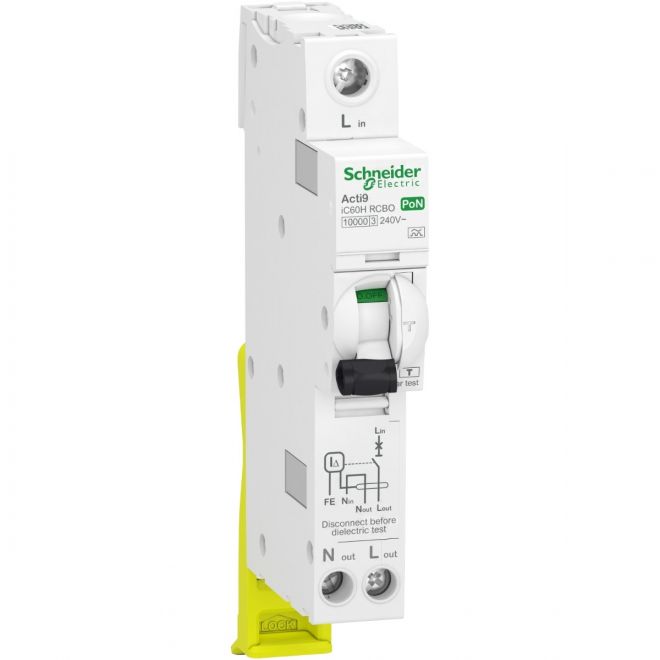

A9D05810 – Schneider Acti9 RCBO Plug in Neutral iC60H 10A C Type 30mA

Product Description

The Schneider Acti9 iC60H RCBO with Plug-in Neutral (PoN) is a high-performance Residual Current Breaker with Overcurrent Protection (RCBO) designed for robust electrical distribution applications. This advanced 10A C-Type device provides essential 30mA earth-leakage sensitivity, ensuring superior safety by quickly disconnecting power in the event of a fault.

Key Features:

• Circuit Breaker Application: Specifically engineered for electrical distribution systems.
• Range: Part of the trusted Schneider Acti9 series, known for quality and reliability.
• Product Name: Acti9 iC60 RCBO, a leading solution for combined protection.
• Product or Component Type: Residual Current Breaker with Overcurrent Protection (RCBO) – offering both overcurrent and earth-leakage protection in a single unit.
• Device Short Name: iC60H RCBO PoN – signifying its high breaking capacity and plug-in neutral design.
• Poles Description: 1P + Ns (Single Pole plus Switched Neutral) for comprehensive circuit isolation.
• Rated Current: 10 A at 50 °C – suitable for various electrical loads.
• Earthing System Compatibility: Optimized for TN earthing systems.
• Curve Code: C-Type – provides magnetic tripping between 5 and 10 times the rated current, suitable for general purpose applications.
• Earth-Leakage Sensitivity: 30 mA – a standard sensitivity for personal protection against electric shock.
• Breaking Capacity: Impressive 10,000 A (10kA) Icn at 240 V AC 50/60 Hz conforming to IEC 61009-2-2, ensuring high fault current interruption capability.

Ensure electrical safety and compliance with the reliable Schneider Acti9 RCBO iC60H 10A C-Type 30mA.
