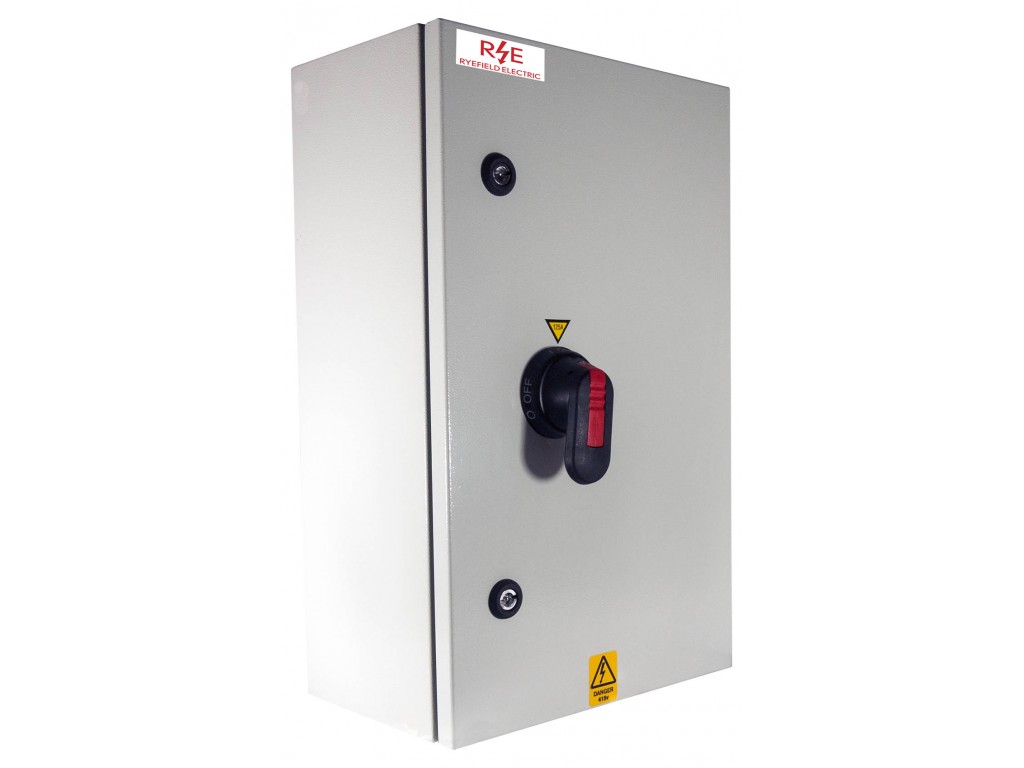

RYEIS2004 – Ryefield Engineering 200A 4 Pole IP65 Metal Switch Isolator ABB Inside

Product Description

RYEIS2004 – Ryefield Engineering 200A 4 Pole IP65 Metal Switch Isolator (ABB Mechanism)

• Powder-coated epoxy resin finish – RAL 7035
• Designed in the UK to BS EN 61439-3
• Manufactured in the UK to BS EN 61439
• IP65 rated to BS EN 60529 – for internal use only
• Voltage rating: 400/415V AC
• Supplied with blank gland plates for ease of installation
• Removable hinged door with lock
• Spacious internal cabling – optional cable boxes available
• Flexible cable entry: top and bottom
• Internally rated IP20 on incoming terminals up to 100A
• Padlockable pistol grip handle

Features

• Safety handle – prevents door opening when padlocked in the ‘Off’ position
• Accepts up to three padlocks in the ‘Off’ position (available for ‘On’ on request)
• Door-interlocked handle – can be overridden for emergency or test access (qualified personnel only)
• Top and bottom blank gland plates included
• Earth terminals fitted within the enclosure
• Four-pole isolation – on-load AC23 rated

Dimensions: 500mm (H) x 400mm (W) x 200mm (D)
