TP18AVS/60 – 18 Way Ryefield Board, 60A Vertical Three Phase Distribution Board

Product Description

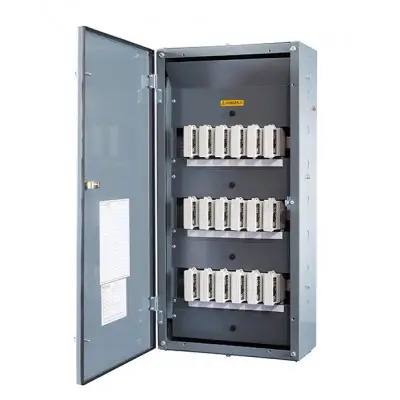

Ryefield TP18AVS/60 – 18 Way Three Phase Distribution Board with 60A Fuses

The TP18AVS/60 is a durable vertical distribution board from Ryefield Engineering, designed to accommodate 18 single-phase circuits across a three-phase supply. Ideal for use in residential blocks, flats, or HMO properties where metered power distribution is required.

• Made from 1.2mm (18g) steel sheet, powder-coated in dark grey (BS381C 632)
• Includes lift-off hinged cover with padlock facility and Multilock system
• Engineered for 18th Edition compliance – retrofit surge-ready
• Back case drilled and embossed for secure wall mounting
• Standard main brass clamps, adjustable to suit 25mm²–120mm² stranded cables
• Earth block with PME link and pinching screw terminals
• Neutral clamps provided for each fuse unit with screw terminals
• Fitted with 18 x 60A service type fuse units
• TPN phase layout: L1/L2/L3 in a 6/6/6 configuration
• Busbar rated to 400A max, short circuit withstand 50kA at 415V
• Dielectric test rated at 2.5kV for 1 minute
• Removable plain gland plates at the top and bottom
• Unit size: 815mm (H) x 400mm (W) x 180mm (D)

Designed for secure and cost-effective multi-circuit distribution, the TP18AVS/60 is commonly used with meter installations and approved for use by DNOs in LV supply systems.
