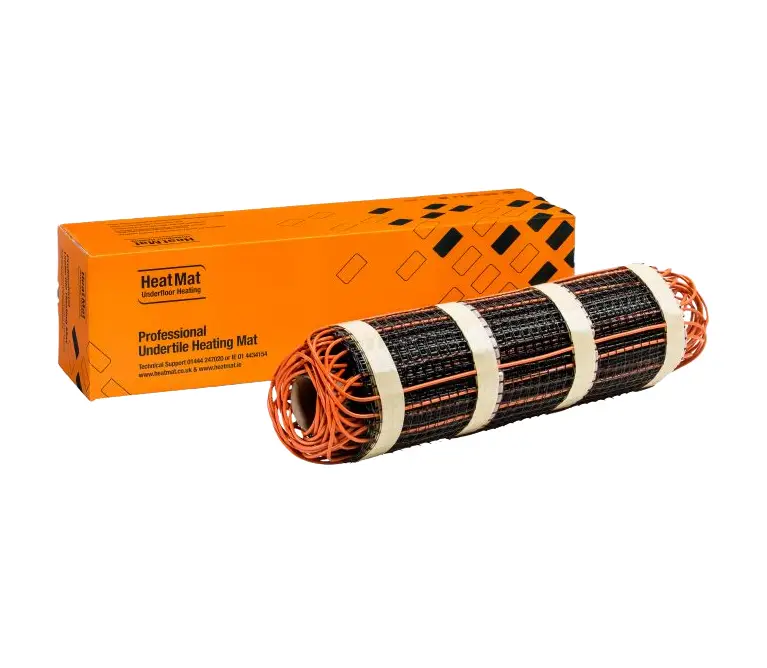

PKM-200-0200 – Heat Mat Underfloor Heating 200W/m² 2.0m²
The PKM-200-0200 Heat Mat offers an efficient and high-output underfloor heating solution, perfect for use under tile or stone flooring. With easy installation, this award-winning system heats up faster than lower-powered alternatives while raising floor levels by just a few millimeters thanks to its ultra-thin construction.
These 200W heating mats are ideal for use in various room types, providing efficient and safe heating. The integrated earth shield makes them suitable for wet areas such as bathrooms, offering flexibility in installation.
- Designed for all rooms: Provides floor warming and can be used as the primary heating source in well-insulated spaces.
- Safe for wet areas: Integrated earth shield allows safe installation in bathrooms and other wet zones.
- Versatile installation: Ideal for use under tiles, stone, and can be installed beneath carpets, vinyl, or bonded wood when combined with a levelling compound.
Technical Specifications:
- Product Code: PKM-200-0200
- Size: 2.0m²
- Wattage: 405W
- Resistance: 142 Ω
- Construction: Dual conductor wire with earth
- Supply Voltage: 240V
- Max Cable Temperature: 90°C
- Wire Thickness: 2.7mm to 3.2mm
- Minimum Cable Radius: 18mm
- Approvals: CE Marked, BEAB system approved
- Compliance: EN 60335-1, EN 60335-2-17, IEC 60730
- IP Rating: IPX7
