JPU200 – 200A Wedge Fuse Link 82mm-92mm Fixing Centres

Product Code: JPU200 Category:

£18.00 inc VAT


  • One year full guarantee. Fourteen day no questions return.
  • Delivery £7.00 ex VAT
  • FREE delivery on orders over £120.
  • SSL secure transactions
  • Call us today for any advice

Product Description

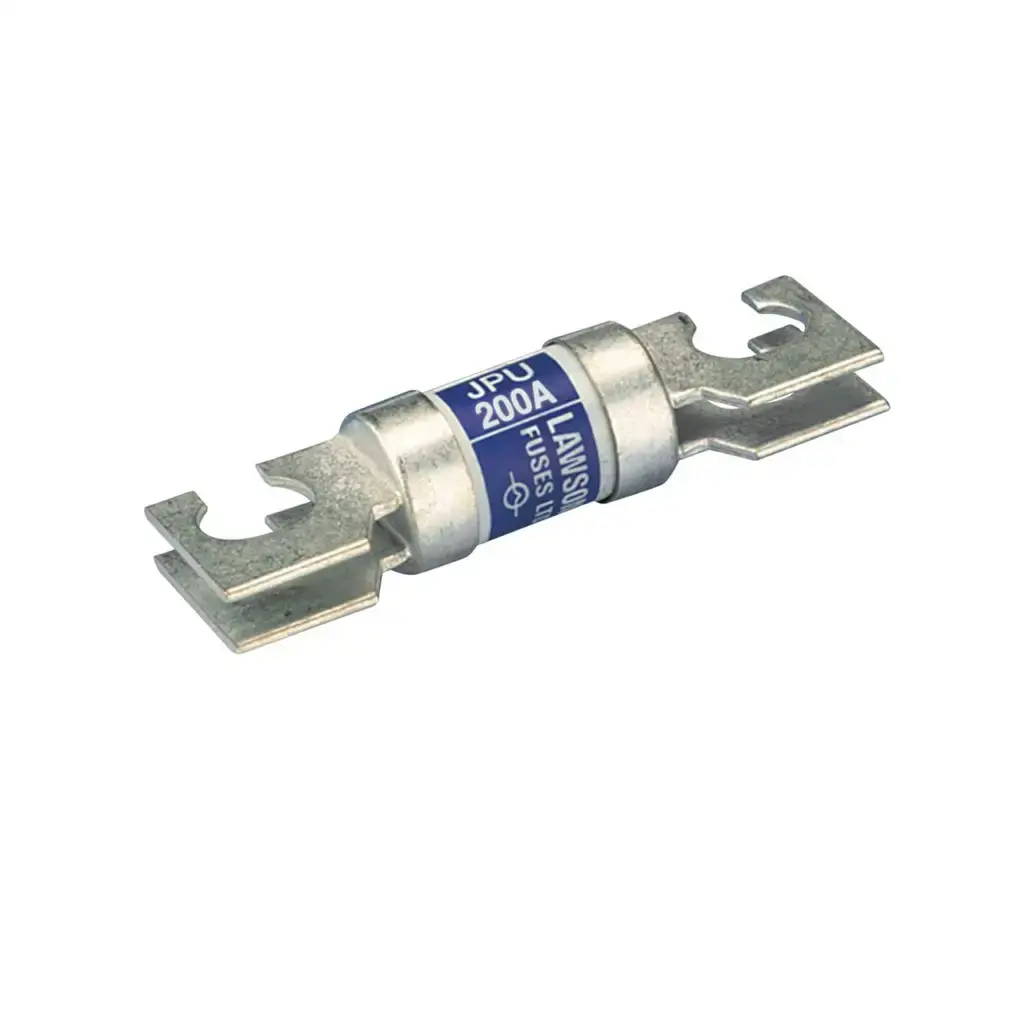

JPU200 – 200A Wedge Fuse Link (82mm–92mm Fixing Centres)

The JPU200 is a 200A wedge fuse link from the Lawson Type J series, designed for electricity supply distribution networks. Suitable for installation in distribution boards, feeder pillars, link boxes, and pole-mounted cut-outs, this fuse link provides reliable protection in heavy-duty service conditions.

Compliant with BS88: Part 5 and IEC 60269-2, the JPU200 is rated at 415V a.c. with a high breaking capacity of 80kA. It features 82mm and 92mm fixing centres, making it compatible with a wide range of standard fittings.

Key Specifications:

  • Current Rating: 200A
  • Voltage Rating: 415V a.c.
  • Breaking Capacity: 80kA a.c.
  • Fixing Centres: 82mm or 92mm
  • Standards: BS88: Part 5, IEC 60269-2
  • Fuse Type: Lawson Type J Wedge Fuse-Link

Alternative References: 95TY, 95TJ, 171TN, MJ27, MJ30, PJ30, JPDS, JOPCS, J1PCS, J2PCS, JX6–JX8, JXS6–JXS8, DL2-2 to DL2-6, 2/EJA to 2S/EJB
