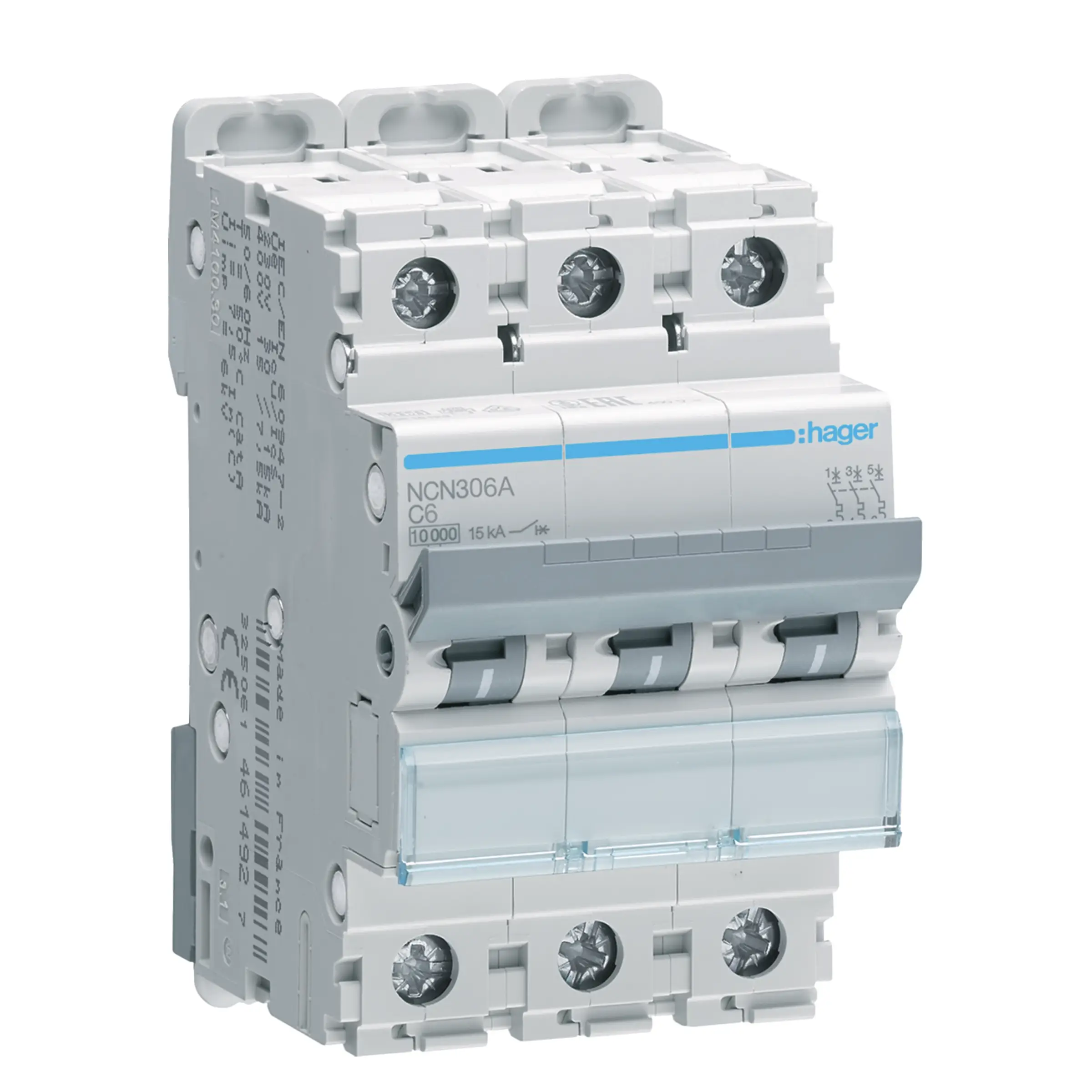

NCN306A – Hager Triple Pole Type C Miniature Circuit Breaker MCB 6A 10kA

Product Code: NCN306A Category: ,

£36.00 inc VAT


  • One year full guarantee. Fourteen day no questions return.
  • Delivery £7.00 ex VAT
  • FREE delivery on orders over £120.
  • SSL secure transactions
  • Call us today for any advice

Product Description

NCN306A – Hager 6A Triple Pole Type C MCB, 10kA

The Hager NCN306A is a high-performance miniature circuit breaker designed for commercial and industrial applications. With triple-pole protection, Type C tripping characteristics, and a 10kA breaking capacity, it provides reliable safety against overloads and short circuits. Built for durability, it also features screw terminals with a secure 2.8Nm tightening torque and an IP20 protection rating.

  • Rated current: 6A, Type C tripping
  • Triple pole (3P), 3 module width
  • Breaking capacity: 10kA (IEC 60898-1)
  • Rated insulation voltage: 500V
  • Impulse withstand voltage: 6kV
  • Operating voltage: 400V AC, 50/60Hz
  • Terminal capacity: up to 35mm² (solid) / 25mm² (flexible)
  • Quick and secure screw terminal connection (2.8Nm)
  • Degree of protection: IP20
  • Operating temperature range: -25 °C to +70 °C
  • Conforms to IEC/EN 60898-1 & IEC 60947-2
