Brand: Europa Components
Product Code: ECLR02

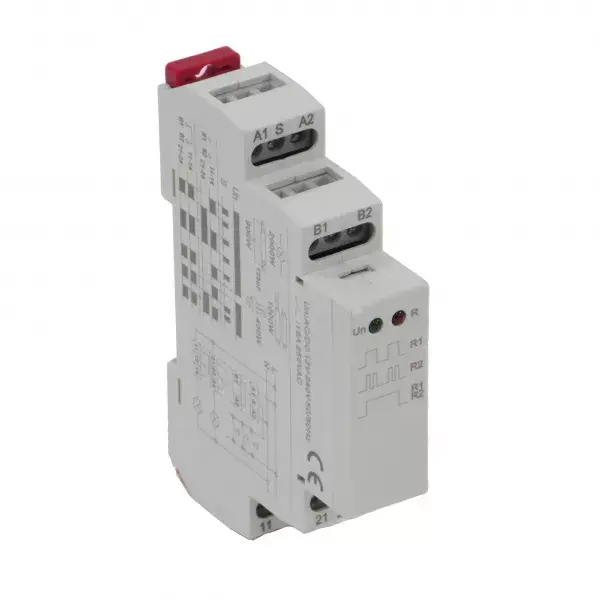

The Europa ECLR02 is a DIN rail-mounted latching relay with dual SPDT (changeover) contacts. It supports impulse control and is ideal for lighting and automation systems where multiple control points are required. Designed for reliability and efficiency, the ECLR02 operates across a wide voltage range and fits easily into standard electrical enclosures.
Key Features:
- 2 × SPDT output contacts
- Control voltage: AC/DC 12–240V
- Power input: max. 12VA / 1.9W
- Switching capacity: 16A / AC1
- Red LED for output status, green LED for supply
- Impulse control input (min. 25ms)
- DIN rail mounting (EN/IEC 60715)
- Mechanical life: 10 million operations
- Electrical life (AC1): 100,000 operations
- Operating temperature: -20°C to +55°C
- Protection: IP40 (front), IP20 (terminals)
Dimensions: 90 × 18 × 64mm
Weight: 79g
Applications: Suitable for lighting control from multiple locations, building automation, and switching circuits where maintained contact is not required.
Must be installed by a qualified electrician in accordance with the latest IET Wiring Regulations.
