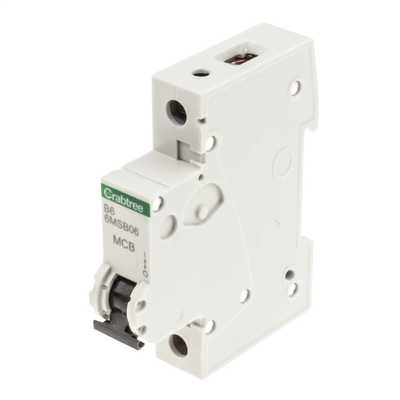

6MSB06 – Crabtree Loadstar 6A Type B MCB
The Crabtree Loadstar 6MSB06 is a reliable miniature circuit breaker designed for residential and commercial consumer units. Offering Type B tripping characteristics, it provides protection against overloads and short circuits with a breaking capacity of 6kA.
- Complies with BS EN 60898-1 standards
- 6A rated, Type B (3–5 In) tripping
- Breaking capacity: 6kA at 230/400V AC
- Energy limiting Class 3 for added safety
- Quick-release DIN rail clip for easy installation
- Terminal capacity: 0.75–25mm² conductors
- Degree of protection: IP20
- Operating temperature range: -5 °C to +40 °C
- CE & UKCA compliant
