Bell 10510V2 – Firestay 5/7W LED CCT Dimmable Wattage Switchable Downlight with Tool-Free Termination

Product Description

Bell 10510V2 – Firestay 5/7W LED CCT Dimmable Wattage Switchable Downlight with Tool-Free Termination | Your Electrics

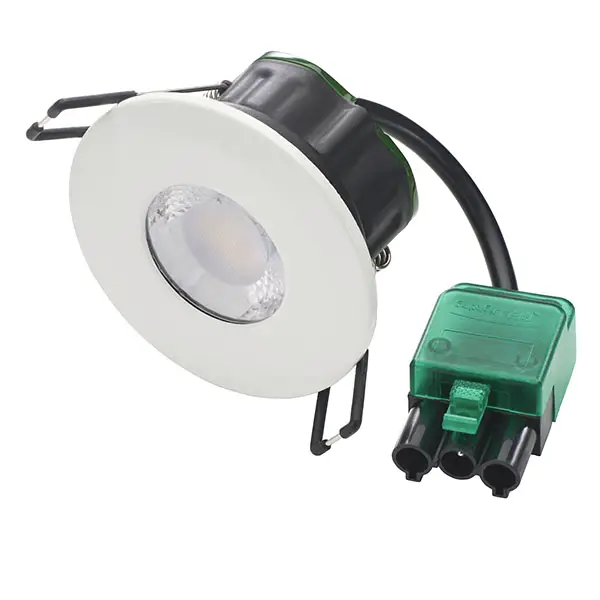

The Bell 10510V2 Firestay CCT V2 LED Downlight is the latest generation of Bell’s market-leading range. Featuring both a 4-way selectable colour temperature and a 2-way wattage switch, this versatile fitting provides 8 lighting combinations in a single unit. With a tool-free lever connector, installation is faster and simpler than ever, while still maintaining the robust Firestay safety certification.

Key Features

• Firestay Certification: Complies with 30, 60, and 90-minute fire-rated ceilings, including solid joist, I-Joist, and metal web ceiling systems.
• Switchable Colour Temperature: Choose from 2700K, 3000K, 4000K, or 6000K.
• Switchable Wattage: Select either 5W or 7W for tailored performance.
• Dimmable: Compatible with leading and trailing-edge dimmers for adjustable brightness.
• Tool-Free Termination: Quick and reliable connections using the integrated lever terminal design.
• High Output: Up to 1115 lumens with excellent efficiency (137–159 lm/W).
• Compact Design: Cut-out diameter: 68mm, Height: 45mm, Overall Diameter: 82mm.
• IP65 Rated: Suitable for bathrooms and other moisture-prone areas.
• IK07 Impact Protection: Durable and resilient build quality.
• Long Lifespan: 70,000-hour life with an upgraded 10-year domestic guarantee.

Why Choose Bell 10510V2?

This next-generation Firestay CCT V2 downlight combines flexibility, performance, and ease of use. With 8 settings in one fitting and a tool-free connection system, it is a true fit and forget solution for residential and commercial lighting projects.

Technical Specifications

• Beam Angle: 60°
• Wattage: 5W / 7W
• Lumens (5W): 684–793 lm depending on colour temperature
• Lumens (7W): 970–1115 lm depending on colour temperature
• Colour Rendering Index (CRI): ≥85
• Voltage: 220–240V
• Frequency: 50/60Hz
• Switching Cycles: 100,000
• Cut-Out Size: 68mm
• Height: 45mm
• Diameter: 82mm
• Part Number: 10510V2
• Manufacturer: Bell Lighting

Upgrade your lighting today with the Bell 10510V2 Firestay CCT V2 LED Downlight. Combining switchable settings, tool-free installation and a 10-year guarantee, it delivers flexibility, reliability, and outstanding performance in one fitting.
