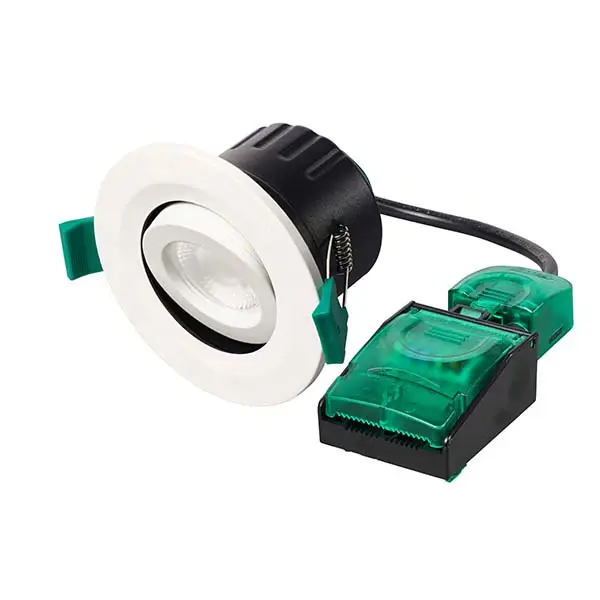

Bell 08190V2 – FireStay LED COB Centre Tilt Downlight (2700K-6000K CCT, 5/7W)
Overview:
The Bell 08190V2 FireStay LED Downlight is a centre-tilt, fire-rated LED lighting solution offering flexibility, energy efficiency, and long-lasting performance. It features a front-accessible switch for selectable wattage (5W or 7W) and colour temperatures (2700K, 3000K, 4000K, 6000K), making it ideal for residential and commercial use. With robust IP65 and IK7 ratings, it’s perfect for bathrooms, wet areas, and high-impact environments, backed by a 10-year warranty.
Now Supersedes Bell 08190: The Bell 08190V2 is the improved and updated version of the original Bell 08190 downlight, offering better performance, more CCT options, and a longer lifespan.
Key Features:
- Fire-Rated: Certified for 30/60/90 minutes on solid joists, and 30 minutes on I-Joist and Metal Web systems.
- IP65 & IK7 Rated: Suitable for bathrooms, wet zones, and impact-prone areas.
- Front Switch Design: Easily select colour temperature and wattage even after installation.
- Dimmable: Compatible with standard mains dimmers.
- Centre Tilt Adjustment: Allows directional light control for precise placement.
- Adjustable Output: Select 5W or 7W power and 2700K–6000K colour temperature via the integrated switch.
- Long Lifespan: 70,000 hours with a 10-year domestic warranty.
High Performance & Efficiency:
Delivering up to 880 lumens and 126 lm/W, the 08190V2 downlight provides high brightness with low energy consumption – ideal for new builds and retrofit projects.
Technical Specifications:
- Power: 5W / 7W (switchable)
- Colour Temperature: 2700K, 3000K, 4000K, 6000K
- Lumens: 620 – 880 lm
- Beam Angle: 60°
- Fire Rating: 30/60/90 min (solid joist), 30 min (I-Joist/Metal Web)
- Impact Protection: IK7
- Ingress Protection: IP65
- Cut-out Size: 80mm
- Fitting Dimensions: Diameter: 105mm | Height: 68mm
- Voltage: 220–240V AC
- CRI: 85
- Lifespan: 70,000 hours
- Warranty: 10 years (domestic)
