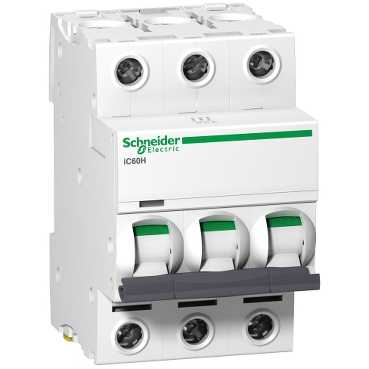

A9F54340 – Schneider Acti9 iC60H 3P 40A C Type MCB
£58.80 inc VAT
- One year full guarantee. Fourteen day no questions return.
- Delivery £7.00 ex VAT
- FREE delivery on orders over £120.
- SSL secure transactions
- Call us today for any advice
Product Description
A9F54340 – Schneider Acti9 iC60H 3P 40A C Type MCB
| range | Acti9 |
|---|---|
| product name | Disbo iC60 |
| product or component type | Miniature circuit-breaker |
| device short name | IC60H |
| poles description | 3P |
| number of protected poles | 3 |
| [In] rated current | 40 A |
| network type | AC |
| trip unit technology | Thermal-magnetic |
| curve code | C |
| breaking capacity | 10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1 42 kA Icu at 12…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2 |
