403GNC – Eaton Glasgow Fuse Switch TPN 400A – Discontinued

Product Description

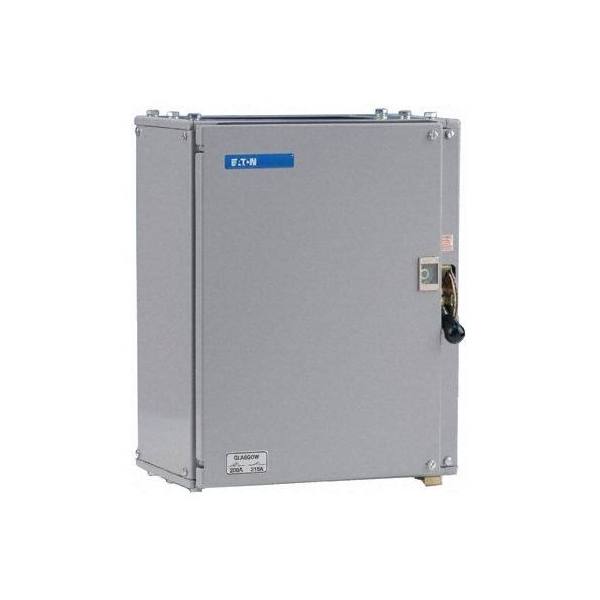

403GNC – EATON GLASGOW TP+N 400A FUSE-SWITCH-DISCONNECTOR | Your Electrics

Important Notice: The 403GNC Eaton Glasgow TP+N 400A Fuse-Switch-Disconnector is now discontinued. For a similar product, we recommend the 403GN Eaton Glasgow TP+N 400A Switch-Disconnector. Click the link to view and purchase.

The 403GNC EATON Glasgow TP+N 400A Fuse-Switch-Disconnector offers robust and reliable performance for electrical installations. This unit is type tested to BSEN60947-3 standards, ensuring compliance with constructional isolation requirements. Ideal for demanding commercial and industrial applications, it combines advanced safety features with ease of use.

Key Features:

• Supplied with fuselinks or switchlinks fitted for ready-to-use convenience.
• Type tested to BSEN60947-3 for isolation constructional requirements.
• Conditional short circuit current rating: 80kA rms at Ue 415V.
• Available in five frame sizes covering a range from 63A to 800A.
• Utilization categories AC22A and AC23A at Ue 415V.
• Switch disconnectors fitted with copper links rated AC20A (Ui 660V) and AC21A (Ue 415V).
• Retractable operating handles driving overcentre mechanisms with powerful operating springs.
• Flag “on-off” indication and terminal cover shields to prevent live contact.

Fuses:

The Glasgow units are designed for use with HRC cartridge fuse links to BS88: Part 2. The 63A and 100A models employ offset contact fuse links. All performance tests have been conducted with Eaton MEM BS88 fuselinks, extending the warranty to 3 years when exclusively used.

Enclosures:

Constructed from heavy gauge steel with cast iron frame members, the surface-mounting enclosures are rust-protected and finished with light grey paint. The front access doors are fitted with dust-excluding gaskets and interlocked to prevent opening while the switch is ‘on.’ Competent personnel can override the interlock for maintenance purposes. Additional features include:

• Operating handles lockable in both ‘on’ and ‘off’ positions.
• Optional castell type interlocks available on request.
• Removable top and bottom end plates for simplified cabling.

Technical Specifications:

• Compliance: BSEN60947-3
• Short Circuit Rating: 80kA, 415V
• Frame Sizes: 63A to 800A
• Utilization Categories: AC22A & AC23A (Ue 415V)
• Dimensions: Width: 680mm x Height: 596mm x Depth: 381mm

This Eaton Glasgow Fuse-Switch-Disconnector, available through Your Electrics, provides unparalleled safety and performance for high-capacity electrical systems.
