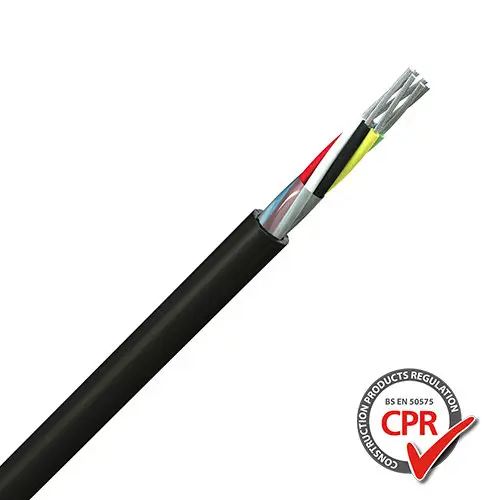

16-2-4A 4 Core 6/0.2mm Def-Stan Multicore Type A LSHF Cable – 200m Drum

Product Description

16-2-4A 4 Core 6/0.2mm Def-Stan Multicore Type A LSHF Cable – 200m Drum

Made by FS Cables

Introducing the 16-2-4A 4C 6/0.2mm Def-Stan Multicore Type A Unscreened, LSHF Cable, FS Cables Part Number: 39200504H, perfect for a wide range of professional and industrial applications. This high-quality, Low Smoke Halogen Free (LSHF) cable is designed for enhanced safety and superior performance. Available on a 200m drum, this cable offers easy handling for large-scale installations, making it an ideal choice for electrical contractors and other professionals.

Constructed with 4 tinned copper conductors and LSHF insulation, this cable provides a robust solution for projects where safety and reliability are key. Its durable outer sheath, made of LSHF material, ensures flame retardancy, low smoke generation, and minimal halogen gas emissions, all of which contribute to a safer environment during use. The cable is suitable for use in control panels, industrial equipment, and other applications where high performance is required.

• Conductor Material: Tinned Copper, 16/0.2mm
• Conductor Insulation: Low Smoke Halogen Free (LSHF)
• Outer Sheath Material: Low Smoke Halogen Free (LSHF)
• Overall Sheath Colour: Black
• Core Identification: 4 different colour-coded cores for easy installation
• Nominal Conductor Resistance @ 20°C: < 40.1 Ω/km
• Insulation Resistance: > 200 MΩ.M
• Voltage Rating: 440V rms up to 1600 MHz
• Current Rating: 3.0 amps
• Overall Diameter: 6.8mm
• Weight: 54 kg/km
• Minimum Bend Radius: 7.5 x 6.8mm
• Temperature Rating: -20°C to 70°C
• Flame Retardant: BS EN 60332-1-2
• Low Smoke Generation: BS EN 61034-2
• Halogen Gas Emission: BS EN 60754-1&2
• RoHS & CE Compliant: Yes
• UV & Weather Resistant: ISO 4892-3 (Subject to manufacturer)

Ensure your next project runs smoothly with the 16-2-4A 4C 6/0.2mm Def-Stan Multicore Type A LSHF Cable from FS Cables. Its high-quality construction and compliance with stringent safety standards make it an ideal solution for demanding environments. Sold on a 200m drum, this cable provides the length and reliability required for extensive wiring projects.
